产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T6的环境；
● 适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台、油轮等场所工作及场景航空障碍指示之用。
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T6 environment;
● It is suitable for lighting in oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms, oil tankers and other work places and scene Aviation obstruction indicator purposes.
技术数据Technical data
● 防爆标志：Ex db eb ⅡC T6 Gb;Ex tb IIIC T80℃ Db
● 防护等级：IP66 额定工作电压：AC220V

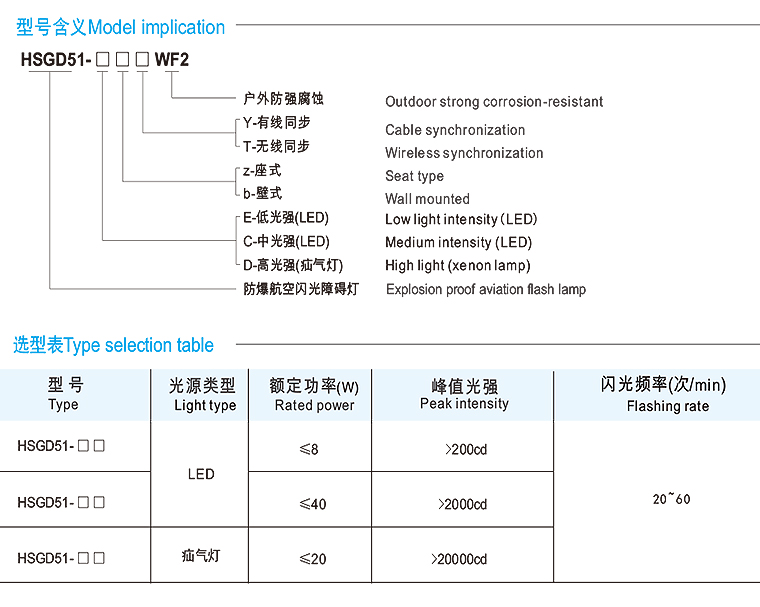

● 额定功率：见选型表 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● 防腐等级：WF2
● Explosion category: Ex db eb ⅡC T6 Gb;Ex tb IIIC T80℃ Db
● Protection category: IP66 Rated voltage: AC220V
● Rated power:See Selected Tables Inlet size:G3/4", suitable Φ10mm-Φ14mm cable
● Corrosion-proof class: WF2

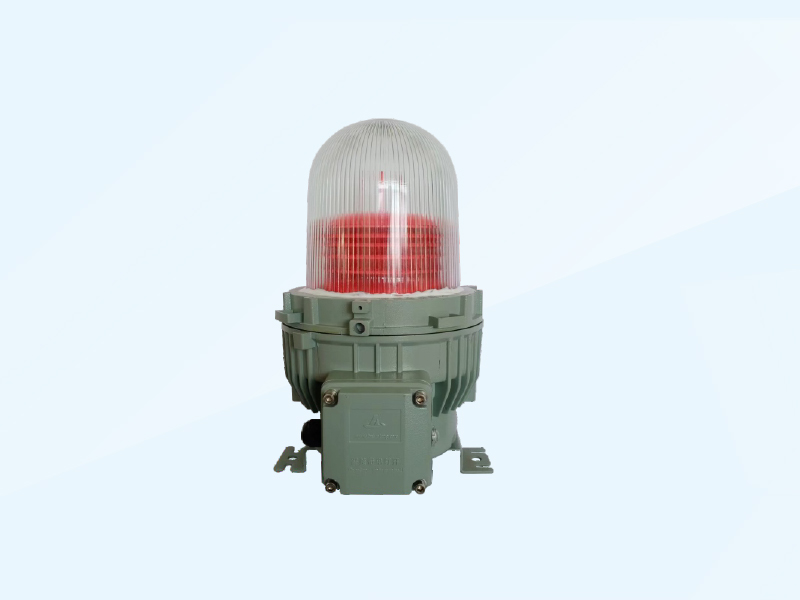

产品特点Product features
● 铸铝合金压铸外壳，表面高压静电喷塑；
● 钢化玻璃罩，在雨雪、冰雹、暴晒等各种恶劣环境中均能正常工作；
● E、C型选用超高亮度LED灯，低功耗、高亮度、寿命长达5万小时免维护；
● D型选用氙气灯光源，功率低，高亮度，寿命长；
● 自动光控开关控制，可靠性强，夜晚和多雾时自动开启，白天自动关闭；
● 若需要多台障碍灯联机工作，只需将同步信号线连在一起，既能实现同步闪烁，也可根据要求，做成无线同步方式或提供集中控制器；
● 钢管或电缆布线均可。
● Cast aluminum alloy die-casting shell, surface high-voltage electrostatic spray;
● Toughened glass cover, in rain and snow, hail, sun exposure and other harsh environment can work normally;
● The E、C type selects the ultra-high brightness LED lamp, low power consumption, high brightness, life upto 50,000 hours maintenance-free;
● G Xenon lamp light source, low power, high brightness, long life; Automatic light control switch control, strong reliability, night and fog automatically open, automatic closing during the day;
● If more than one obstacle lamp is needed to work on-line, only the synchronous signal line can be connected together, which can not only realize synchronous flicker, but also make wireless synchronization mode or provide centralized controller according to requirements;
● Steel pipe or cable wiring
