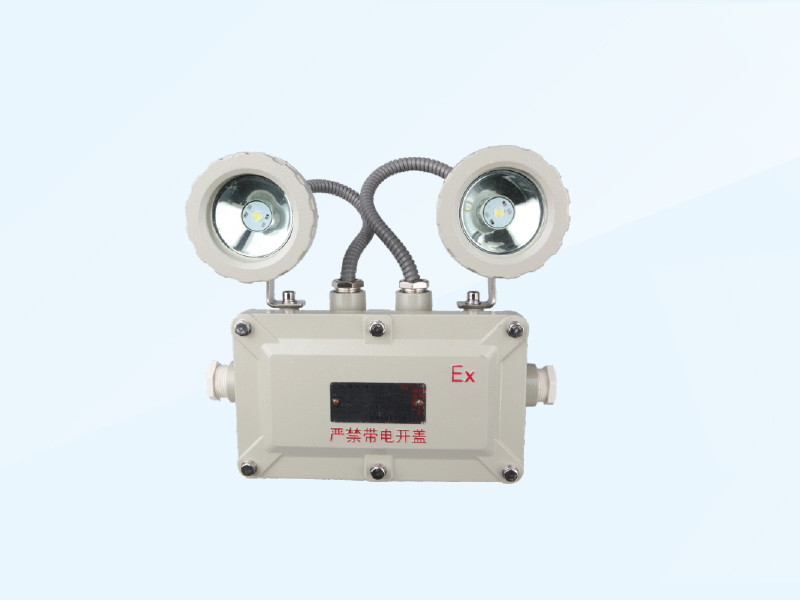

产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T6的环境；
● 适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台、油轮等场所工作及场景照明之用。
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T6 environment;
● It is suitable for lighting in oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms, oil tankers and other work places and scene purposes.
技术数据Technical data
● 防爆标志：Ex db eb mb IIC T6 Gb/Ex tb IIIC T80℃ Db
● 防护等级：IP66
● 应急照明：LED光源 1W、2W、3W、5W、6W、9W、12W
● 额定电压：AC220V/DC36V
● 应急电压：DC36V
● 应急时间：120min
● 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● 防腐等级：WF2
● Explosion category:Ex db eb mb IIC T6 Gb/Ex tb IIIC T80℃ Db
● Protection category:IP66
● Emergency lighting: LED light :1W、2W、3W、5W、6W、9W、12W
● Rated voltage:AC220V/DC36V
● Emergency voltage:DC36V Emergency time:120min Inlet size:G3/4", suitable Φ10mm-Φ14mm cable
● Corrosion-proof class:WF2
产品特点Product features
● 铝合金压铸外壳，表面高压静电喷塑；
● 钢化玻璃，不锈钢外露紧固件；
● 高亮度LED,低功耗、寿命长达5万小时免维护；
● 应急专用形式，内装免维护电池组，在正常供电条件下自动充电，事故断电或停电时应急灯自动点亮；
● 特殊设计的内部电路，具有过充、过放、短路保护等性能；
● 设有自检功能，每月自动放电一次；
● 设有年检功能，每隔一年自动由主电转入应急工作状态至放电终止，然后自动恢复主电状态；
● 钢管或电缆布线均可。
● Aluminum alloy die-casting shell, surface high-voltage electrostatic spray;
● Toughened glass, stainless steel exposed fasteners;
● High brightness LED, low power consumption, life up to 50,000 hours maintenance-free;
● Special form of emergency, equipped with maintenance-free battery pack, automatic charging under normal power supply conditions, emergency lights when power failure or power failure automatically lit;
● Special designed internal circuit with overcharge, over-discharge, short circuit protection and other performance;
● Self-test function, automatic discharge once a month;
● With annual inspection function, every other year automatically from the main power into emergency working state to discharge termination, and then automatically restore the main state;
● Steel pipe or cable wiring.
