产品介绍
适用范围Application
● 道路照明(城市道路、街道、高速公路和工厂道路等)
● 区域照明(市政广场、商业区、停车场、厂区、露天库区等)
● Road lighting (urban roads, streets, expressways, factory roads, etc.)
● Regional lighting (municipal square, commercial area, parking lot, factory area, open storage area, etc.)
技术数据Technical data
● 防护等级：IP66 Protection category:IP66
● 防腐等级：WF2 Corrosion protection grade: WF2
● 额定工作电压：AC220V Rated voltage:AC220V

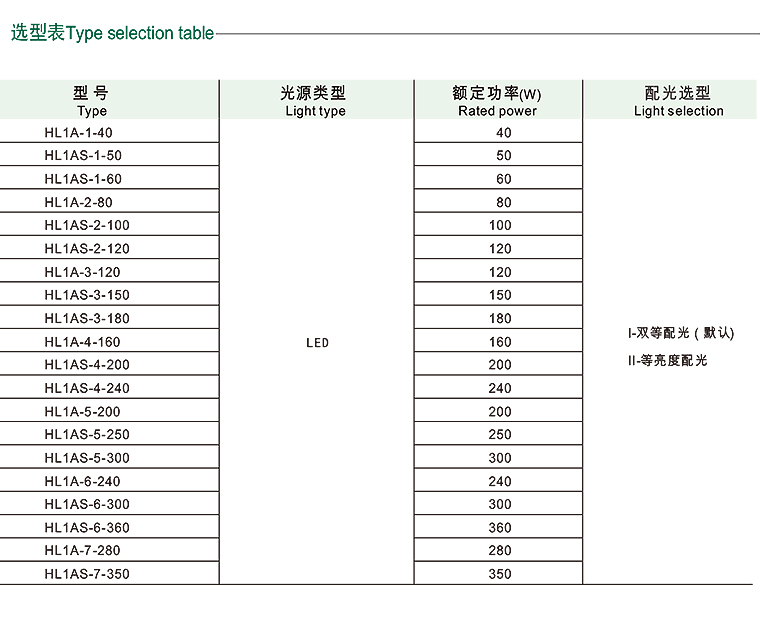

● 额定功率：见选型表 Rated power:See table of options
产品特点Product features
● 主体材质采用铝合金及铝型材，表面高压静电喷涂；
● 模组化可插拔技术，简易工具维护；
● 蜂窝式散热和全结构式散热技术，高 效散热性能，双耦合IP66防护，超高防水等级；
● 单颗损坏不影响其他颗粒电流；
● 智能恒流驱动技术，突破电源寿命瓶颈；
● 采用国 际知 名品牌LED光源，光效高、光衰小、能耗低、显色性高、无闪烁、超长使用寿命；
● 根据道路照明的特性进行配光设计，光线均匀柔和，无眩光。
● The main material is aluminum alloy and aluminum profile, surface high voltage electrostatic spraying; Modular pluggable technology, simple tool maintenanc;
● The heat dispersal technique of cellular and whole structure increased the cooling performance.Double coupled make the protection grade reaching IP66;
● The single lamp bead does not affect the others’ current; Intelligent constant-current drive technology breaks the ‘bottle neck’of power working life;
● Adopt international famous brand LED light source, high luminous efficiency, low light failure, low energy consumption, high color rendering, flicker-free, long service life; According to the characteristics of road lighting light distribution design, light even soft, no glare.
