产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T5的环境；
● 适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台、油轮等场所工作及场景照明之用；
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T5 environment;
● It is suitable for lighting in oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms, oil tankers and other work places and scene purposes.
技术数据Technical data
● 防爆标志：Ex eb ib mb IIC T6 Gb;Ex tb IIIC T80 ℃ Db Ex eb ib mb IIC T5 Gb;Ex tb IIIC T95 ℃ Db
● 防护等级：IP66
● 额定工作电压：AC220V

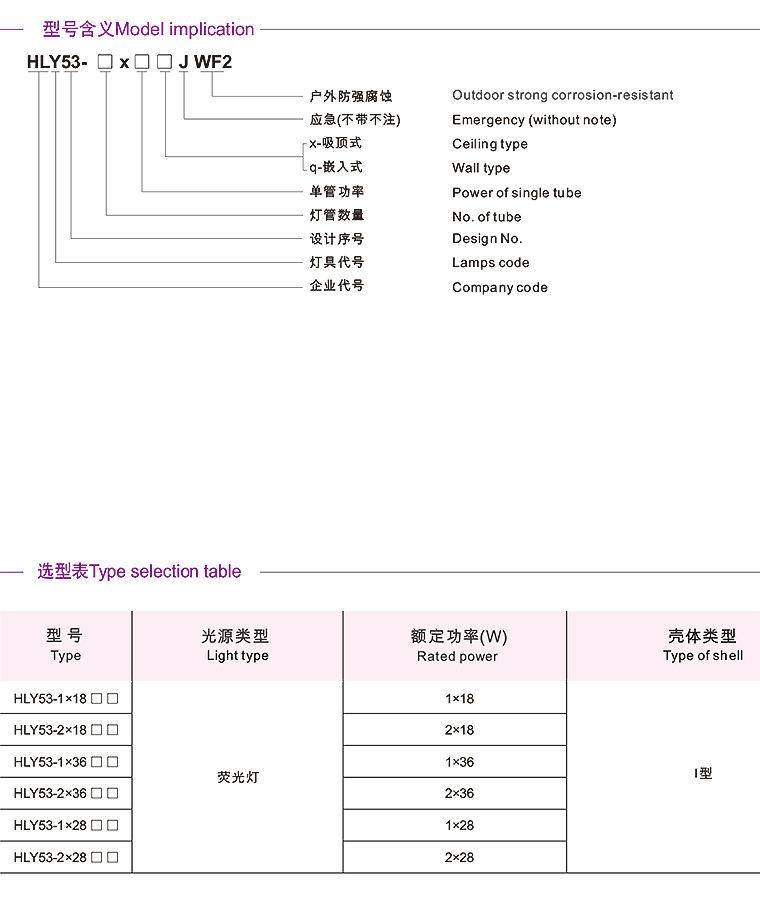

● 额定功率：见选型表 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● 防腐等级：WF2
● Explosion category: Ex eb ib mb IIC T6 Gb;Ex tb IIIC T80 ℃ Db Ex eb ib mb IIC T5 Gb;Ex tb IIIC T95 ℃ Db
● Protection category: IP66
● Rated voltage: AC220V
● Rated power:See type selection table Inlet size:G3/4", suitable Φ10mm-Φ14mm cable
● Corrosion-proof class: WF2
产品特点Product features
● 外壳采用优质钢板成型，也可采用不锈钢板成型；
● 灯罩采用钢化玻璃，透光率高、承受冲击能力强，抗热聚变；
● 外壳采用密封结构，具有良好的防尘、防水、防强腐蚀等性能；
● 可根据用户要求配置应急装置，当外界断电时，灯具自动切换到应急照明状态；
● 特制电源，具有短路、开路等保护功能； 电缆或钢管布线。
● The shell is made of high quality steel plate or stainless steel plate;
● The lampshade is made of toughened glass with high light transmittance, strong impact resistance and therma resistance;
● Shell is a sealed structure with good dustproof, waterproof, anti-corrosion and other properties;
● Emergency device can be configured according to user requirements. When external power is failure, lamps will automatically switch to emergency lighting state; Special constant current power supply, with short circuit, open circuit protection; Special power supply, with short circuit, open circuit and other protection functions;
● Cable or steel pipe wiring.
