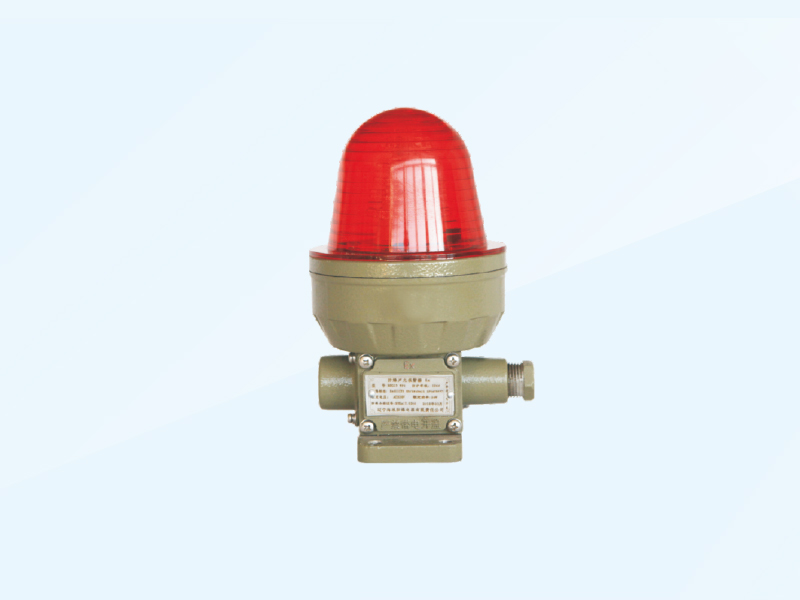

产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T6的环境；
● 适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台、油轮等场所工作及场警示景照明之用。
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T6 environment;
● It is suitable for lighting in oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms, oil tankers and other work places and scene purposes.
技术数据Technical data
● 防爆标志：Ex db IIC T6 Gb;Ex tb IIIC T80℃ Db
● 防护等级：IP66
● 额定工作电压：AC220V/DC24V
● 声响强度：≥75dB
● 闪光次数：150次/min
● 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● 防腐等级：WF2
● Explosion category: Ex db IIC T6 Gb;Ex tb IIIC T80℃ Db
● Protection category: IP66
● Rated voltage: AC220V/DC24V
● Sound strenght:≥75dB
● Sparking frequency:150once/min
● Inlet size:G3/4", suitable Φ10mm-Φ14mm cable Corrosion-proof class: WF2
产品特点Product features
● 铸铝合金压铸外壳，表面高压静电喷塑；
● 钢化玻璃罩，不锈钢外露紧固件；
● 声、光报警，灯颜色有红、蓝、黄等供选择；
● LED光源,寿命长、免维护；
● 钢管或电缆布线均可。
● Cast aluminum alloy die-casting shell, surface high-voltage electrostatic spray;
● Toughened glass cover, stainless steel exposed fasteners;
● Sound, light alarm, lights have red, blue, yellow, etc;
● LED light source, long life, no maintenance;
● Steel pipe or cable wiring
