产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T6的环境；
● 适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台、油轮等场所工作及场景照明之用。
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T6environment;
● It is suitable for lighting in oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms, oil tankers and other work places and scene purposes.
技术数据Technical data
● 防爆标志：Ex db eb mb ⅡCT5 Gb;Ex tb IIIC T95℃ Db Ex db eb mb ⅡCT6 Gb;Ex tb IIIC T80℃ Db
● 防护等级：IP66
● 额定工作电压：AC220V/AC24V-36V/DC24V-36V

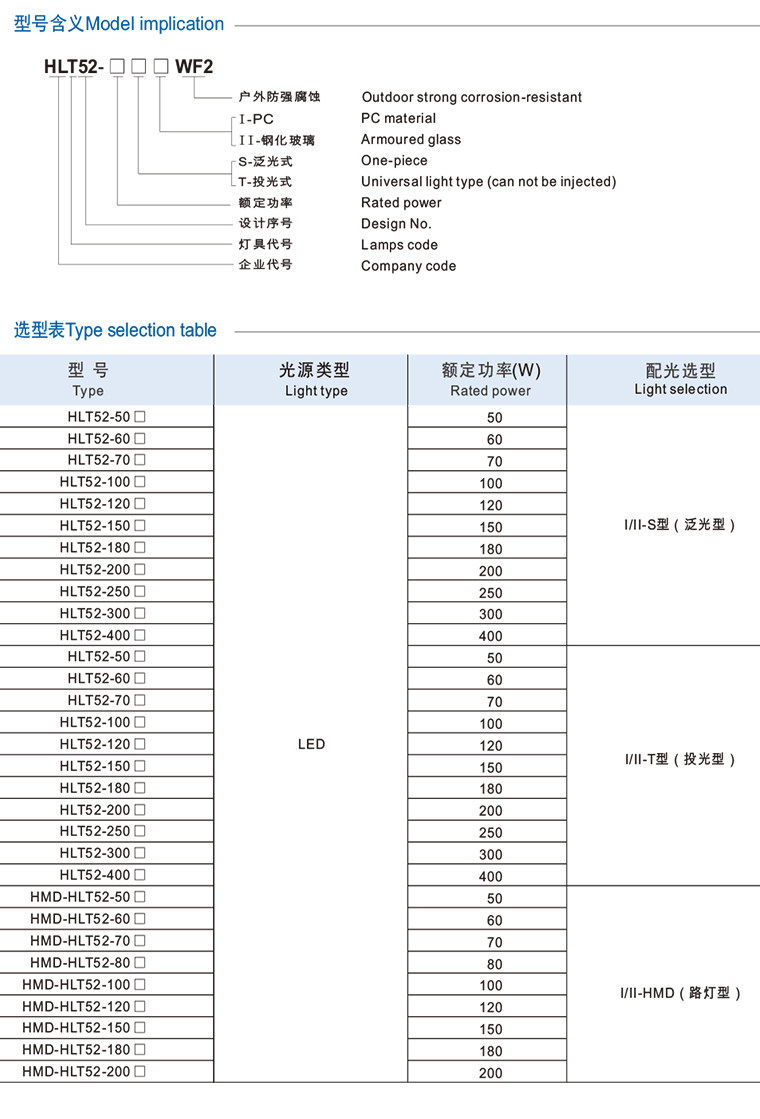

● 额定功率：见选型表
● 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● 防腐等级：WF2
● Explosion category:Ex db eb mb ⅡCT5 Gb;Ex tb IIIC T95℃ Db
● Ex db eb mb ⅡCT6 Gb;Ex tb IIIC T80℃ Db
● Protection category: IP66
● Rated voltage: AC220V/AC24V-36V/DC24V-36V
● Rated power:See type selection table Inlet size:G3/4", suitable Φ10mm-Φ14mm cable
● Corrosion-proof class: WF2
产品特点Product features
● 壳体采用高强度合金铝一次压铸成型,表面经高速拋丸清理后高压静电喷涂;
● 外壳结构紧凑合理,材质密度高强度好，防爆性能优良;
● 表面塑粉附着力强，具有良好的防腐能力，表面光洁,美观大方:

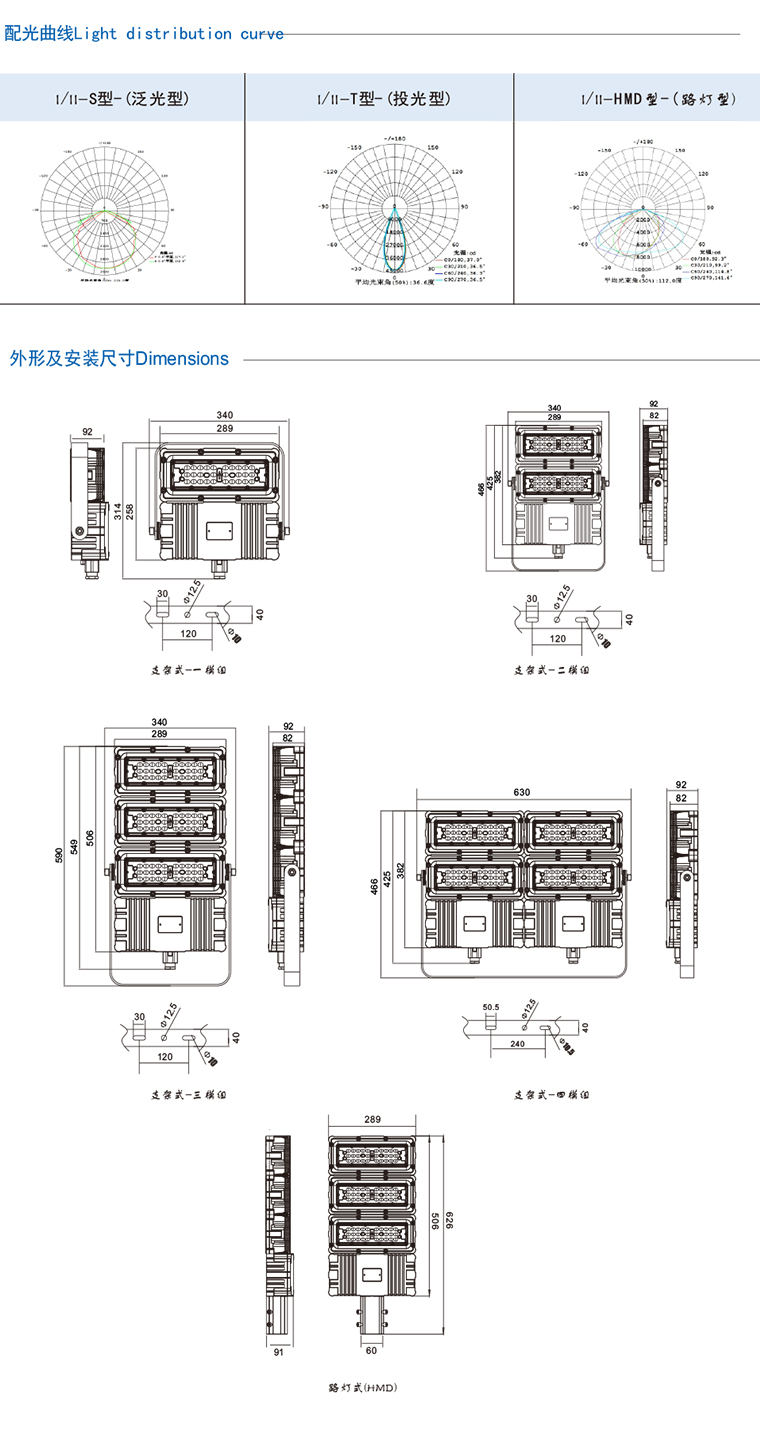

● 专业光学软件设计的二次配光曲线,可提供30*. 60*. 90*. 120*等 多种角度配光供现场需求使用.从而实现投、泛光灯以及
路灯的配光要求，光東分配合理，照度均匀，反射率高,利用效率高:● 光源选用国际知名品牌.合理排布.单项发光。光线均匀柔和，光效-1201m/w.显色性高Ra80.寿命长.不低于50000小时;
● 防爆模块化设计，便于检修和升级.采用高强度物理钢化玻璃透光罩，可选用PC透光罩.高透光与防眩设计;
● 特制恒流恒压电源.宽电压输入，恒功率输出.功率因数COS中20.95.具有恒流、防浪涌，开路、短路等保护功能，抗干扰电网设计，快速启动；
●开放式散热结构，散热充分,有效散发光源热量,确保灯具长寿命工作;
● 外露紧固件采用高防腐性能不锈钢材质;
● 独特设计调节角度机构,可根据要求调节照度;
● 可配置路灯专用连接套,用于路灯照明.钢管或电缆布线均可。
● The shelis made of high-strength aluminum alloy by one time die casting, and its surface is deaned by high-speed shot blasting and then high-pressure electrostatic spraying;
●The shell structure is compact and reasonable, the material density is high and the strength is good, and the explosion-proof
performance is excellent;● Thesurface plastic powder has strong adhesion, good anti- corrosion abllity, bright and clean surflace, beautiful and generous;
●The secondary light distribution curve designed by professional optical software can provlde 30。, 60", 90。，120。and other
angles of light distr ibution for field demand, so as to realze the projecion, floodlight and The lightdistribution requirements of
street lamps are reasonable, uniform llumination, high reflectivity and high utillzation eficiengy;●The light source shall be selected from international famous brands, with rea sonable arrangement, single lighting, unifor m and
soft light, light eflciency > 1201m/ w, high color rendering Ra > 80,long service life, no less than 50000 hours;● The explosion-proof modular de slgn is convenient for maintenance and upgrading.
●The high- strength physical toughened glass transparent cover, PC transparentcover can be selected, with high transparency and
anti glare design;Speclal constant current and voltage power supply, wide voltage input, constant power output, power factor cos20.95, with constant current, anti surge, open drcult, short cdrcuit and other protection functions, antl-interference power gridDesign, fast start; .● Openheatdissip ation structure, sufficientheat dissipation, effective he at emission of the light source, to ensure long life of the
lamp● The exposed fasteners are made of stainless steel with high corrosionresistance;
● Unlque design angle adjustmentmechanism, can adjust llumination according to requirements;
● Itcanbe equipped with special connection sleeve for street lamp, which can be used for street lamp lighting, steel pipe or cable wiring.
