产品介绍
适用范围Application
适用于爆炸性环境1区、2区；
适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
适用于温度组别为T1～T4的环境；
适用于石油采炼、储存、化工、医药、军 工等危险环境及海洋石油平台油轮等场所。
It is suitable for Zone1 and 2 of explosive atmospheres;
It is suitable for Class ⅡA, ⅡB, ⅡC of explosive gas atmospheres;
It is suitable for temperature group T1 ~ T4 environment;
It is for oil refining, storage, chemical, pharmaceutical, military and other hazardous environments as well offshore oil platforms and tankers and other places.
技术数据Technical data
防爆标志：Ex db IIC T4 Gb;Ex tb IIIC T130℃ Db
防护等级：IP65
额定工作电压：AC220V/380V
防腐等级：WF2
Explosion category: Ex db IIC T4 Gb;Ex tb IIIC T130℃ Db
Protection category: IP65
Rated voltage: AC220V/380V
Corrosion-proof class: WF2
产品特点Features
电加热管外壳为不锈钢，内部采用耐高温绝缘胶压力注射定型电热体；
法兰式安装；
可根据用户要求特殊定制；

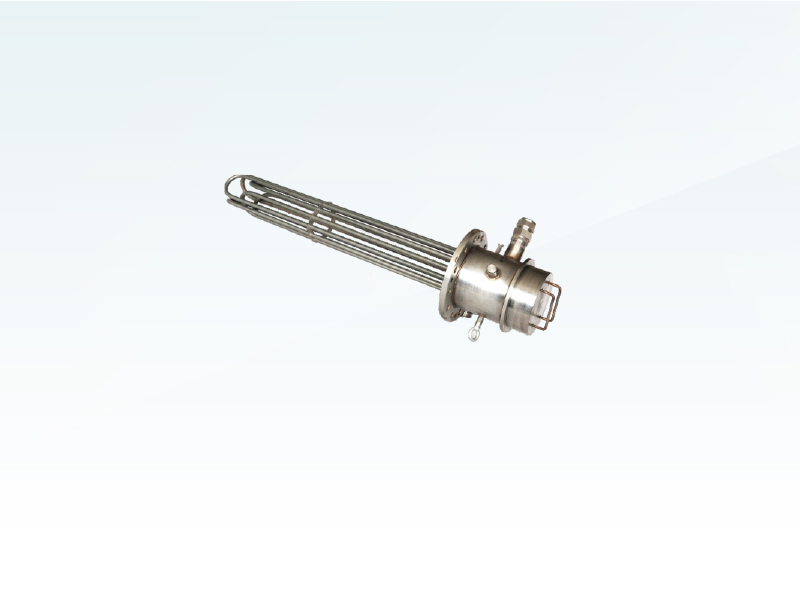

The shell of the electric heating tube is made of stainless steel, and the inner part is made of high temperature resistant insulating glue pressure injection molding electric heater;
Flange mounting;
It can be made according to user requirements
