产品介绍
适用范围Application
● 适用于爆炸性环境1区、2区；
● 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；
● 适用于可燃性粉尘环境21区～22区；
● 适用于温度组别为T1～T6的环境；
● 适用于石油、化工、军 工等场所。
● It is suitable for Zone1 and 2 of explosive atmospheres;
● It is suitable for ClassⅡA, ⅡB, ⅡC of explosive gas atmospheres;
● It is suitable for Zone 21~ 22 of combustible dust atmospheres;
● It is suitable for temperature group T1 ~ T6 environment;
● Suitable for petroleum, chemical, military and other places.
技术数据Technical data
● 防爆标志：Ex db eb mb IIC T6 Gb/Ex tb IIIC T80℃ Db
● 防护等级：IP66
● 额定工作电压：AC220V/DC36V
● 额定功率：1W、2W、3W、4W、5W、6W
● 应急功率：3W
● 应急时间：2h 引入口规格：G3/4"，适合Φ10mm-Φ14mm电缆
● Explosion category: Ex db eb mb IIC T6 Gb/Ex tb IIIC T80℃ Db
● Protection category: IP66
● Rated voltage: AC220V/DC36V
● Rated power:1W、2W、3W、4W、5W、6W
● Emergency power:3W
● Emergency time:2h Inlet size:G3/4", suitable Φ10mm-Φ14mm cable
产品特点Product features
● 外壳为高强度铝合金一次性压铸成型，强度好、结构好、防爆性能卓越。
● 表面经过高速抛丸处理后，再高 采用高亮度发光板，具有低功耗、长寿命、免维护等特点；
● 压静电喷塑，塑粉附着力强，防腐性能好；
● 内装免维护镍氢电池组，正常时自动充电，指示标志24小时长亮；

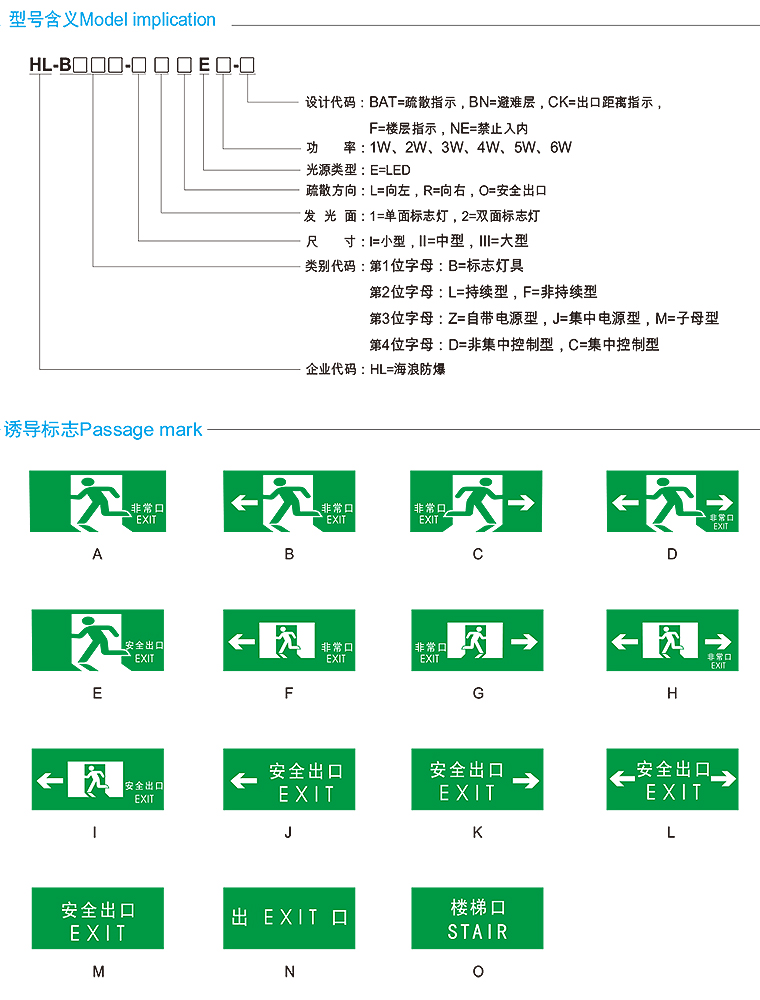

● 诱导指示标志由用户自由选择；
● 电缆或钢管布线均可。
● The enclos ure is moulded by the high strength aluminum alloy for one time.Its exterior has sprayed with pl-astic by high pressure static after shot blasting at high speed. There are s ome advantages in the enclosure,tight structure, high density materials,great strength, fine explosion-proof functions.It has strong adhesion of plastic powder and great anticorrosive performance;
● Inducing signals can be selected by users;
● Inside pack mianweihu nimh batteries, normal when automatically charges, directional signs 24 hours long bright;
● Built-in non-mainrenance Ni hydro gen battery, it also can charge automa-tically in normal condition and auto-lighting while accident happened or power is failureconditions;
● Steel pipe or cable wiring.
